Low Tds Water Bottle Filling Machine , Spring / Mineral Water Filling Line

Name: Low Tds Water Bottle Filling Machine Spring Mineral Water Filling Line
Brand: COMARK
Price: 12 USD

China Low Tds Water Bottle Filling Machine , Spring / Mineral Water Filling Line wholesale

Brand Name : COMARK

Place of Origin : Jiangsu, China

MOQ : "1 - 1 Sets,2 - 2 Sets,>=3 Sets"

Price : ,$12,000.00,

Contact Now

Final Products

Low Tds Water Bottle Filling Machine , Spring / Mineral Water Filling Line

Product Description

Drinking Water Purification And Bottling Plant / Mineral Water Filling Unit Equipment Machine

The machine combines washing, filling and capping three function in a body,used to produce plastic bottled mineral water,purified
water machinery. The whole process is automatic, Filling way using the gravity or micro pressure filling, make the speed is faster
and more stable, so with the same model our machine output is higher and more efficient. The CGF series bottled water filling line
can achieve different output: 2000 / 4000 / 6000 / 8000 / 10000 / 12000 / 16000 /18000 /20000 / 24000 BPH.

The complete production line includes:
1> PET bottle blow molding machine
2> Water treatment system
3> 3 IN 1 water washing filling capping machine
4> Ink code printer / Laser code printer
5> PVC shrink sleeve / OPP hot glue / Adhesive sticker labeling machine
6> PE film packaging machine / Carton packaging machine
7> Automatic palletizer

Product Details

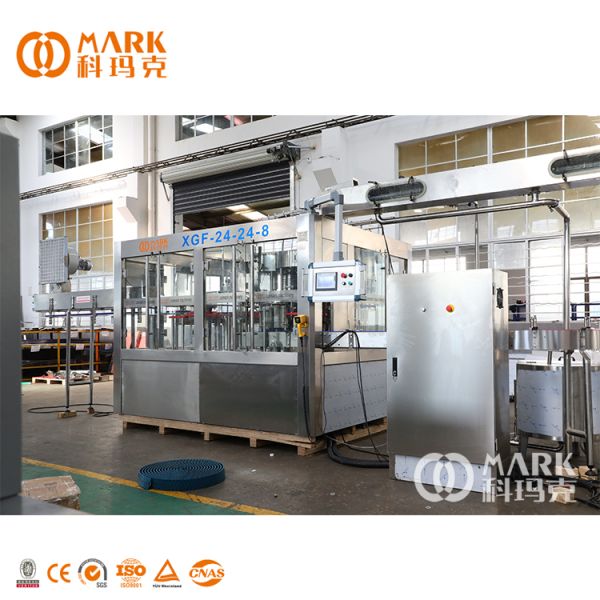

water filling machine

This Drink water bottle filling machine / equipment / production line used to produce polyester bottled mineral water, purified
water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as
washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions,
production capacity and economic efficiency.

touch screen

the PLC and inverter we also use the siemens brand

touch screen

touch screen we use the siemes brand .this will have a good control

Washing Part

1. The roller bearing is made of stainless steel, the sealing ring is made of EPDM material, and plastic is made of UMPE.
2. The gripper equipped with high-efficient spray nozzle, it can develop to any position of inwall of the bottle, and can save
rinsing water. There is a cover above the spray nozzle which can prevent water spilling, and there are regulatory recycle slot and
recycle pipes under the nozzles.

Filling Part

1. Adopted Germany igus anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2. The filling valve opens and begins filling when it moves down and touches the bottleneck, the filling valve move up and leave
the bottleneck when it finishes filling.
3. Sliding bearing is adopted Germany igus anti-corrosion non-maintaining bearing, that can reduce the pollution of filling to the
environment.

Capping Part

1. Introduce most advanced cap sealing technology called France “ZALKIN ", this improvement can reduce the defective rate of
capping better and the traditional character of easy to set and adjust the torque of screwing capping head.
2. There is a cap-lock cylinder in the joint between the cap-falling guide and poking cap plate. It is realize that no feeding no
cap.

Technical Parameters

Model

CGF
8-8-3

CGF
14-12-5

CGF
16-16-5

CGF
18-18-6

CGF
24-24-8

CGF
32-32-8

CGF
40-40-10

CGF
50-50-15

Capacity ( for 500ml )

2,000

4,000

9,000

6,000

12,000

15,000

20,000

24,000

Suitable bottle shapes

PET Circular or square

Bottle diamater

50-120 MM

Bottle Height

150-320 MM

Compressor air

0.3-0.7 Mpa

Washing Medium

Aspetic Water

Power

3.01 kw

3.75 kw

5.05 kw

5.03 kw

6.57 kw

8.63 kw

10.68kw

12 kw

Overall Dimensions

2000*1800*2250 mm

2100*1800*2250 mm

2760*2060*2250 mm

2360*1830*2250 mm

2900*2200*2250 mm

3880*2200*2250 mm

3700*3000*2350 mm

4500*3300*2350 mm

Weight

2000kg

3800kg

2500kg

4200kg

6000kg

7000kg

9000kg

Complete Line Equipment

Water Treatment

It is mainly composed of the following equipments:
1> Pre-treatment system (water tank / multi-medium filter / active carbon filter / ion exchanger / precious filter)
2> Membrane separation system (ultrafilter / nanometer filter / RO reverse osmosis system)
3> Electrodialysis device / Sterilization system (UV device, ozone device) product water tank and so on.4> Used for pure water,
mineral water and other bottled water，water for food and beverage production.

Auto Blow Molding Machine

1> Blow moulding machine 1,000-24,000bph, and 0.25-2L PET bottles are available.2> It is widely used to produce the carbonated
bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle, etc.3> The man-machine
interface is highly automated and easy to operate.
4> The compact machine occupies a smaller area.
5> The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.

Auto PVC Labeling Machine

1> The mainly used for container labeling cylindrical, square or other special shapes of detergents, beverages, mineral water,
food, etc.
2> Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.3> High speed,
high accuracy, stable performance.
4> Easy to operate and look elegant appearance.

Pe Film Packing Machine

1> Compact &artistic shape. The frame is novel, unique.
2> Electronic induction feeding film, action is balanced and quickly replacing film.
3> Isothermal sealing cutter .The seal intensity is above cooling sealing cutter 3 times, the seal is even and the life is above
cooling sealing cutter 80 times.
4> Transport system with speed regulation by frequency variation, the transmission action is precise and synchro.

Control System

Company Profile

00:00

Zhangjiagang Comark Machinery Co.,ltd

Zhangjiagang Comark Machinery Co., Ltd. is located in Zhangjiagang Economic Development Zone on the Bank of the Yangtze
River. It has an international standard plant of 20000 square meters. It is an enterprise specializing in the R & D and production
of beverage packaging machinery.Our team has more than 20 professional technical R & D personnel, 2 doctors of food science and
technology, 5 masters and 15 senior professional engineers. This provides a favorable guarantee for the stable operation of the
machine with high output. Our company´s equipment is of high quality and can operate stably.We have more than 15 years of packaging experience. We understand market supply and demand and can provide market analysis, project budget, equipment and
technology configuration, machines installation and operator training, etc. We always provide turnkey solutions and related
services.

FAQ

Q:How to find COMARK Machinery?

A:Search Alibaba, Made in China, Google, Youtube and find suppliers and manufacturer and not traders
Visit exhibition in different countries
Send Comark Machine an request and tell your basic inquiry
Comark Machine sales manager will reply you in short time and add instant chatting tool

Q:If we purchase machines, what can you provide for us?
A1:We can provide whole solutions.We have professional engineer who analysis production demand based on customer market demand and
customer budget .A2:We have the bottle shape design according to customer inquire. We also can provide the machines layout for you according your
factory figure plan.
A3:We will send our professional engineer to your factory as soon as you get all your machines ready, for installation, testing
and teaching your technicians how to run the machines.

Q:When can I get my machine after I paid?
A:We will deliver the machines on time as the date we agreed both side. Normally production time is around 35-75 days. The exact
time depends on what kinds of machine you ordered. The shipping time is based on your destination port.

Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you. You can come to China.Check it!

Q:What´s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
